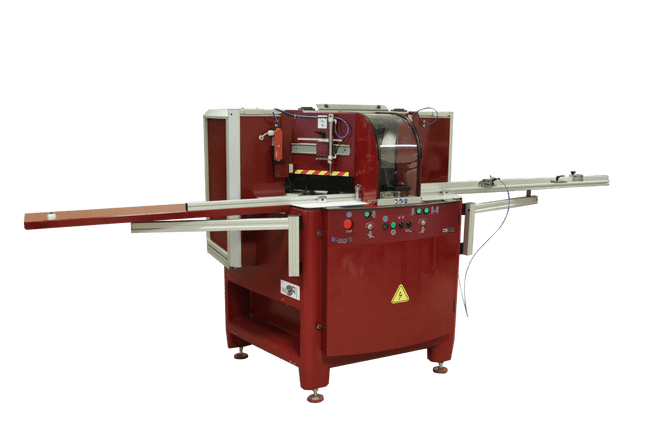

*Cassese CS969 Automatic Double Mitre saw 45 degree 3 phase 400v | RRP: £18878 + VAT

Product code: 000347

Product information

Contact us with enquiries


The CS969 is solidly built weighing in at 720kilos it is designed and engineered with a focus on durability, reliability and safety. The front and rear panels can be removed so that it can fit through most doorsteps and with its cast concrete base all the vibrations and movements are absorbed for perfect cuts everytime.

Read the CS969 product brochure.

The cast iron cutting head assembly avoids any disadjustment or "play" of parts for an everlasting reliability. Air is ducted to the heavy duty bearings, which reduces the chance of overheating and prolonging the life of the machine. The oversized blade collars eliminate any possibility of blade flix and the blades are easily adjustable for accurate angle and pitch

Satisfying the highest safety standards in the world two erganomic buttons for operation keep hands away from the cutting area and with its completely enclosed design no motors or blades are exposed.

Dust is extracted at the blades which dramatically reduces dust by extracting it at the source. It is also capable of synchronised switching on of the dust extractor so that both machines run and stop simultaneously, reducing power consumption and excessive noise

Moulding max width - 160mm
Moulding max height - 110mm

Dimensions
Length - 3350mm
Width - 1090mm (759mm without front and rear panels)
Height - 1907 (1363 with hood closed)

Air Supply
6 bars (1ltr/cycle)

Electric supply
400v triple phase 10amp

Motor
1.5kw, 2hp each

Rotation speed
3200 trs/mn (400v triple phase)

Optional Accessories

Short Stop - Please ask for quote upon order of the machine for this accessory

Main features
  • Horizontal cutting stroke
  • 4 pneumatic clamps - 2 horizontal, 2 vertical
  • Automatic cutting stroke
  • 45 degree measuring scale
  • No waste
  • Internal cutting block support
  • 1.5m support arms
  • No blocked chutes

Technical specifications

Brand Cassese
Product Code 000347
Weight 750kg
